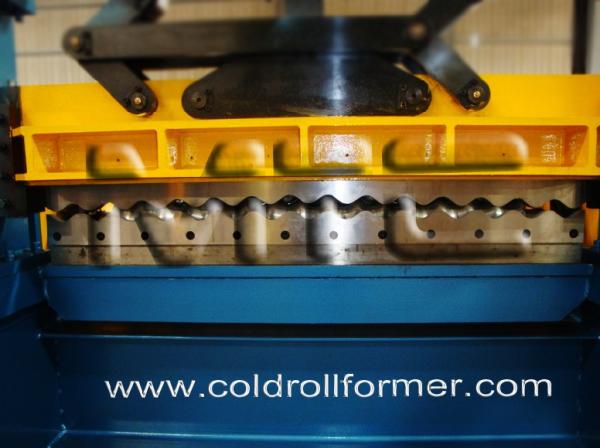

This Corrugated Roofing Sheet Forming Machines are for the manufacture of Metal corrugated Roof sheets and Siding Panel. Our corrugated roofing sheet forming machine are special for manufacturing various high quality roof & wall cladding. With our engineer's many times improvements, the roof machine design is perfect. The profile surface is smooth and power fee is lower, driven by chain. The whole line consists of uncoiler and its base, coil sheet guiding equipment, roll forming system, post-cutting equipment, hydraulic station, controlling system, and run out table.

Further information, pls contact with us!

corrugated roofing sheet forming machine
Product Description corrugated roofing sheet forming machine, Corrugated Panel Forming Machine, Corrugated Roll Forming Machine
Raw Material: Color steel, GI coil
Raw Material Thickness: 0.3-0.8mm
Raw Material Width: 1220mm
Main Motor Power: 5.5 KW
Roller Stands: 17 Groups
Machine Frame stand: Welded structural steel
Thickmess of Fame Steel: 18mm
Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
Transporting Type: 1.2' Chain Transmission
Material Of Chain: High Grade 45#, Heated and quenched HRC 45-50
Main Axis Material: High grade 45#
Axis Diameter: 70mm

B.Technical process for corrugated roofing sheet forming machine:
Manual decoiler---feed with guide---roll forming---cut with fixed length---output with table

C.corrugated roofing sheet forming machine line:
Manual decoiler, main roll forming machine, hydraulic cutting device, hydraulic station, PLC computer control, output table
