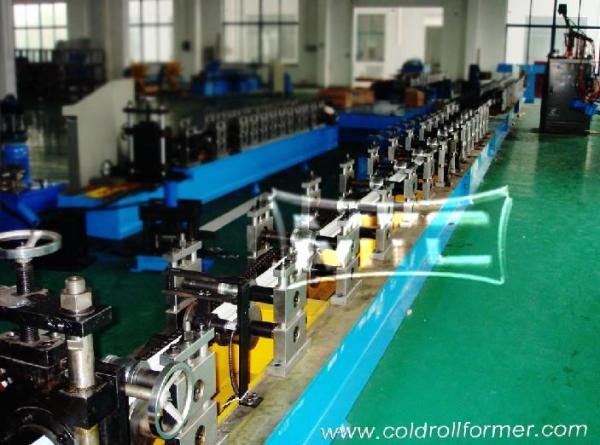

General Information of PU rolling shutter slat production Line:

Rolling Shutter Door Profiles

Top layer and Bottom layer are galvanized steel, and in the middle is the PU Board

The Width of the Products: 42/55/77/90mm(Only one profile in line)

The speed of the line: 8-10m/min.

The diammension of the line: 28mx1.5mx1.4m

The total Weight of the Line: 13 Tones

Components of the PU rolling shutter slat production Line:

3T Manaul Uncoiler

Feeding Guide

Transimmision parts

Roll Forming Machine

Heating Device

Foaming Machine

Hydraulic Punching system(for 42/55mm)

Pneumatic Fly-saw Cutting

Control Parts

Runout Table

Technical Parameters for PU rolling shutter slat production Line:

Thickness of Sheets: 0.3mm_0.5mm.

Production Speed: 8_10m/min.

Roller Stations: 36 stations.

Main Power: 7.5KW.

Material of Rollers: High-quality 45# forged steel coated with hare chrome( some rollers are made from Gcr15 bearing steel quenched).

Material of Shafts: 45#steel with refined processment and tempering treatment.

Diameter of Shafts: 55mm.

Transmmission: Gear-box or chain-brocket.

Motor Power for cutting: 3KW.

Electrical Control: PLC Control with frequency converter

Cutting Length Tolerance: 2mm.

Layout of the PU rolling shutter slat production Line:

Decoiling-Feeding-Roll Forming-PU Foaming-Heating-Fly-saw Cutting-Finishing.
